Cadastre export · QLD · NSW · VIC

Property boundaries, easements and cadastral context

Bring the selected parcel, surrounding cadastre, roads and published easement geometry into CAD, GIS or Google Earth without extracting each state source by hand.

Four vector formatsLot and plan attributesSeparate named layers

Check this for your site

Enter a QLD, NSW or VIC address. We will carry it into the export tool and confirm exact availability before purchase.

Cadastre datasets currently offered

This list is rendered from the live fulfilment catalogue. Exact feature coverage and positional quality depend on the state digital cadastral database.

Property Boundary

Cadastral lot boundaries with lot/plan attributes.

NSWQLDVIC SHPDXFGPKGKMZ

Roads

Road centrelines with names, for site context and setout.

NSWQLDVIC SHPDXFGPKGKMZ

Easements

Registered easements over the cadastre, from the state digital cadastral database.

NSWQLDVIC SHPDXFGPKGKMZ

Choose the format by workflow

  • DXF: projected linework for AutoCAD, Civil 3D, BricsCAD and similar CAD tools.
  • GeoPackage: all populated vector layers in one GIS file with attributes and CRS.
  • Shapefile: one portable dataset per layer for established GIS handoffs.
  • KMZ: WGS84 layers for Google Earth review and lightweight sharing.

Keep the layers distinct

The project lot, surrounding cadastral parcels, easements and roads remain separate named layers. That makes it easier to style, query, freeze or hand off only what a consultant needs.

Combine them with contours, planning zones, hazards or imagery in the same export when broader context is useful.

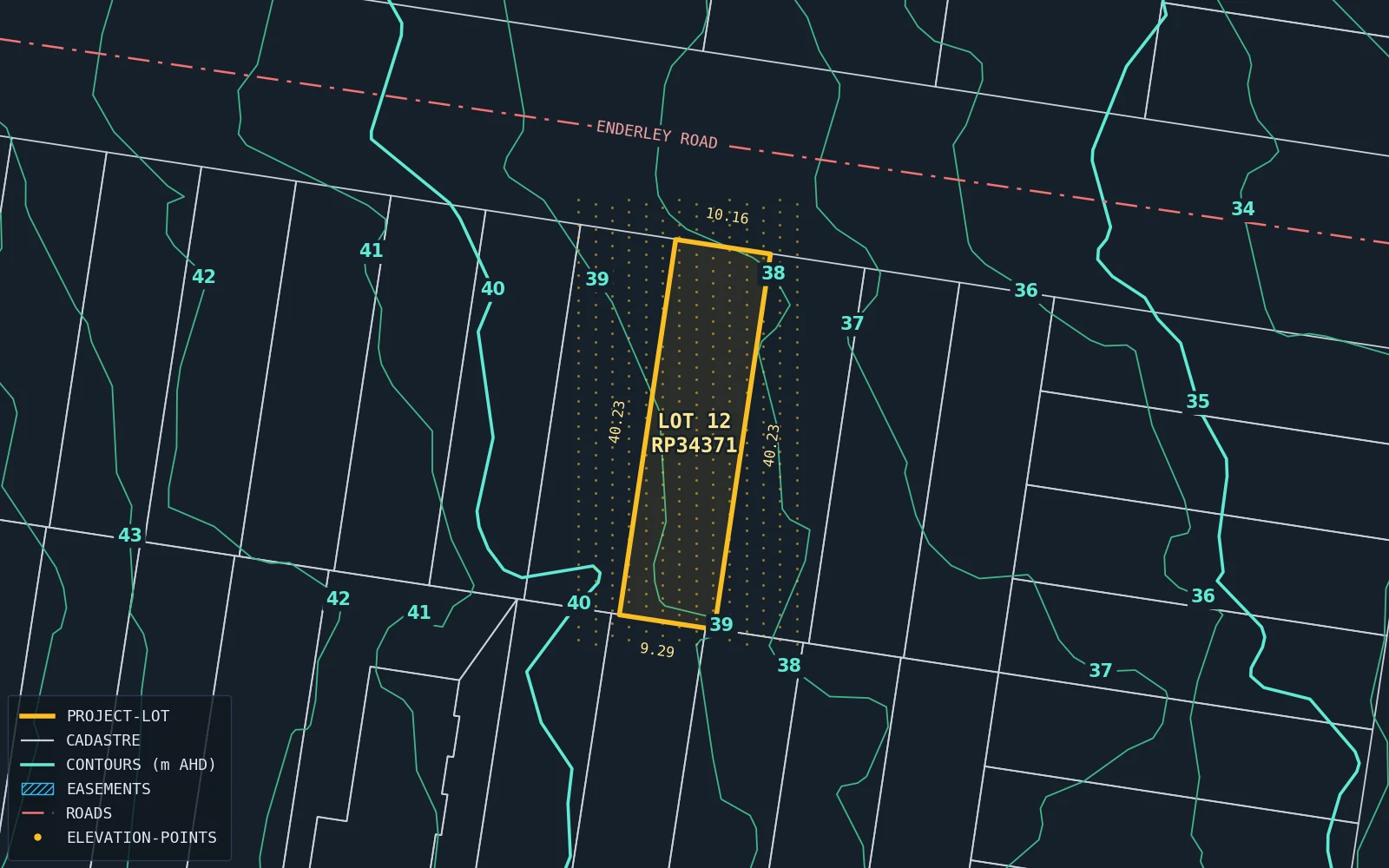

Sample cadastral export showing parcel boundaries, easements, roads and the selected project lot

Evidence from the current sample

See the actual boundary and easement layers

The current Queensland sample includes 71 cadastral features, the selected project lot, seven road features and two mapped easement features. Open the GeoPackage or compare the corresponding DXF, Shapefile and KMZ handoffs.

Inspect the sample ZIP →

Mapping context is not legal or survey evidence

Use cadastral and easement exports to understand the site early, then verify the decisions that depend on them.

Useful for

  • Desktop base mapping
  • Early feasibility and option studies
  • Consultant briefing
  • Overlay alignment and site orientation

Still confirm with

  • Current title search and registered plan
  • Registered boundary survey
  • Relevant authority requirements
  • On-ground service and easement location where required
Digital cadastre is mapping-grade and may not match surveyed boundary position. Easement geometry does not describe every legal term, benefiting party or build-over restriction. Do not use these layers for setout or as a substitute for title, survey or legal advice.

Boundary and easement guides

Cadastre in Civil 3D and QGISPick the right format and understand mapping-grade boundary limits. What easements meanSeparate mapped geometry from the rights recorded on title. Coordinate systemsKeep cadastre aligned with terrain, imagery and survey data.

Check boundary and easement data

Start with the address, then add terrain, planning or imagery layers if the job needs more context.

Check an address →
